The annual iF Design Awards this year attracted 6402 entries from 54 countries. The awards have been running since 1954; this year the panel of judges selected just 65 winners.
The Red Dot scheme, also dating from the 1950s, recognises qualities such as ‘ease of use, high level of functionality, attractive appearance and compatibility with the environment’.

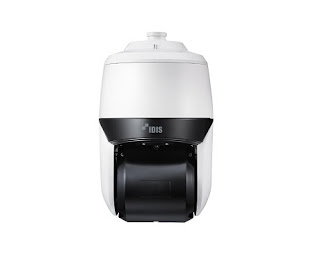

IDIS’s H.265 IR DC-S3883HRX model, provides images using an 8MP Auto Focus lens and comes with infra-red LED for motion detection and image analysis of objects at up to 200m at night. With its sleek, ergonomic construction the camera’s horizontally placed lens and IR are designed to reduce camera height and prevent diffuse reflection during tilt moving. This design feature improves usability with smooth movement of the lens head.
The network PTZ also features a 31x AF optical zoom lens (f=6.5 – 202mm) delivering 4K UHD (3840 x 2160) resolution, as well as two-way audio, built-in heater and PoE. In addition, it incorporates IDIS Intelligent Codec and MAT (motion adaptive transmission) technology, which delivers savings of up to 90 percent on storage and bandwidth, depending on the scene and resolution, the makers say.
James Min, Managing Director, IDIS Europe, pictured, said: “The IDIS development team is delighted with these international awards because they recognise the importance that we give to product excellence in surveillance. Our aim is to continually improve on the design, quality and performance of our products and to lead innovation whenever we can.”
• Easy installation with DirectIP NVR
• 4K UHD (3840 x 2160) resolution
• AF optical zoom lens (f=6.5 - 202mm), 31x zoom
• micro SD/SDHC/SDXC, Smart Failover (Up to 128GB)
• Two-way audio
• Alarm in / out
• IK10 / IP66 supports
• Built-in heater
• PoE (IEEE 802.3bt), 24V AC
• Day and night (ICR)
• True wide dynamic range (WDR)
• Electronic Image Stabilization (EIS) with gyro sensor
• IR LED (Distance : 200m / 656.2ft)
• Supports ONVIF
• 4K UHD (3840 x 2160) resolution
• AF optical zoom lens (f=6.5 - 202mm), 31x zoom
• micro SD/SDHC/SDXC, Smart Failover (Up to 128GB)
• Two-way audio
• Alarm in / out
• IK10 / IP66 supports
• Built-in heater
• PoE (IEEE 802.3bt), 24V AC
• Day and night (ICR)
• True wide dynamic range (WDR)
• Electronic Image Stabilization (EIS) with gyro sensor
• IR LED (Distance : 200m / 656.2ft)
• Supports ONVIF
| Specification of DC-S3883HRX | |
| Image Sensor | 1/1.7" CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | DirectIP™ Mode : f=6.5 - 202mm |
| Compatibility Mode : 31x | |
| Aperture | F1.55 - 4.8 |
| Iris Control | DC Auto Iris |
| Angular Field of View | Wide : 58.2º(H), 34.4º(V), 65.2º(D) Tele : 1.99º(H), 1.13º(V), 2.3º(D) |
| Min. Illumination | Color : 0.1 lux @ F1.55 B/W : 0 lux (IR LED ON) |
| S/N Ratio | more than 45dB |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter ( 1~1/5, 1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| TDN / WDR | Yes(ICR) |
| TDN / WDR | WDR |
| IR Distance (LEDs) | 200 m /656.2ft (2ea) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction | Configurable 2DNR/3DNR |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes(EIS) |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Auto Tracking |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | Pan: 0.02~128°/sec (preset 128°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | Tilt: 0.02~128°/sec (preset 128°/sec) |
| Preset | 250ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP™ Mode : DirectIP |
| Compatibility Mode : IDIS ONVIF Profile S |
|
| Max. Frame Rate | DirectIP™ Mode : 30ips : 3840 x 2160(WDR) |
| Compatibility Mode : 30ips : 3840 x 2160(WDR) | |
| Supported Resolution | |
| Compatibility Mode : 3840 x 2160 (8MP), 1920x1080, 1280x720, 640x360 | |
| Multi-video Streaming | DirectIP™ Mode : Quadruple Streaming |
| Compatibility Mode : Quadruple Streaming | |
| Network Protocols | DirectIP™ Mode : DirectIP Protocol |
| Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
|
| Security | DirectIP™ Mode : SSL Encryption |
| Compatibility Mode : Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
|
| Remote Access Client | DirectIP™ Mode : DirectIP NVR Connection |
| Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite | |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 128GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Face Detection, Alarm in, Tampering |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | Line-in 1ea / Line-out 1ea |
| Alarm In / Out | Input 8ea / Output 2ea |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66, Heater |
| Operating Temperature | -40°C ~ +60°C |
| Operating Humidity | 0% ~ 90% |
| Power Source | 24VAC, PoE (IEEE802.3bt / PoE Injector) |
| Power Consumption | Max 51W(Heater on, IR LED ON) |
| Approval | FCC, CE(50130-4), KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø242mm x 401.1mm (Ø9.52" x 15.79") |
| Weight | 7.4kg (16.31 lb) |
